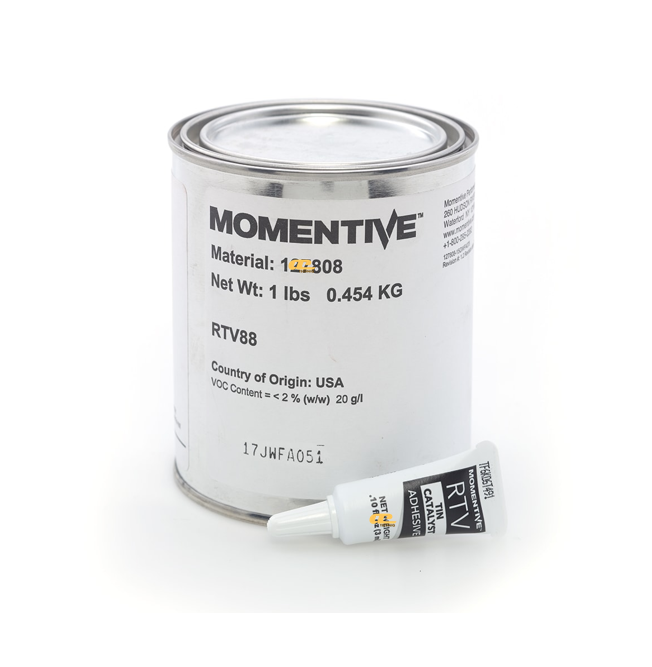

Item Name: RTV31, RTV60, RTV88
Manufacturer: Momentive Performance Materials
Technologies: Two-part silicone elastomers (base + curing agent, typically DBT)
Color: Red
Cure Type: Room temperature cure with catalyst (variable cure rates)
Package Size: Contact to Techniq VN for details.
Shelf Life: Contact to Techniq VN for details.
RTV31, RTV60, and RTV88 are high-temperature, two-part silicone rubber compounds supplied as a base and standard DBT (dibutyl tin dilaurate) curing agent. They cure at room temperature to form durable, resilient silicone elastomers. The products differ primarily in uncured viscosity, allowing for variable work times and cure rates by adjusting the curing agent type or concentration. These solvent-free compounds provide excellent adhesion (with primer), release properties, and retain elastomeric properties over a wide temperature range (-54°C to 260°C continuously; up to 316°C short-term).
High-temperature potting and encapsulation of electric motors and transformers.
Fabrication of rubber parts and molds for low-melting point metals.
Release applications, e.g., rubber rollers.
Thermal insulation in industrial applications.
Suitable for applications requiring controlled work time, deep section curing, or automated mixing.
Before Mixing / Uncured
| Property | RTV31 | RTV60 | RTV88 |
|---|---|---|---|
| Color | Red | Red | Red |
| Consistency | Pourable | Pourable | Spreadable Paste |
| Viscosity (cps) | 25,000 | 47,000 | 880,000 |
| Specific Gravity | 1.42 | 1.48 | 1.47 |
| Work Time @ 25°C (hrs, with 0.5% DBT) | 2 | 2 | 0.75 |
| Cure Time @ 25°C (hrs, with 0.5% DBT) | 24 | 24 | 24 |
After Curing (0.5% DBT, 7 days at 25°C, 50% RH)
| Property | RTV31 | RTV60 | RTV88 |
|---|---|---|---|
| Hardness (Shore A) | 54 | 57 | 58 |
| Tensile Strength (kg/cm² / psi) | 61 (870) | 70 (990) | 59 (830) |
| Elongation (%) | 170 | 120 | 120 |
| Tear Strength (kg/cm / lb/in) | 5 (29) | 7 (40) | 8 (42) |
| Shrinkage (%) | 0.6 | 0.6 | 0.6 |
| Dielectric Strength (kV/mm / v/mil) | 17 (430) | 17.7 (450) | 17.4 (440) |
| Dielectric Constant @ 1000 Hz | 4.4 | 4.0 | 4.3 |
| Dissipation Factor @ 1000 Hz | 0.03 | 0.02 | 0.03 |
| Volume Resistivity (ohm-cm) | 1.6×10¹⁴ | 4.4×10¹⁴ | 2.8×10¹⁴ |
| Useful Temperature Range (°C) | -54 to 260 | -54 to 260 | -54 to 260 |
| Thermal Conductivity (W/m·K) | 0.31 | 0.31 | 0.31 |
| Coefficient of Expansion (cm/cm°C) | 20×10⁻⁵ | 20×10⁻⁵ | 20×10⁻⁵ |
| Specific Heat (cal/g°C / BTU/lb°F) | 0.35 / 0.35 | 0.35 / 0.35 | 0.35 / 0.35 |
