• Type: Pneumatic Syringe Dispenser
• Brand: Musashi Engineering
• Capacity: 0.02 to 0.70 MPa pressure range, 10ms to 9999 sec dispensing time
• Size: 142 x 138 x 103 mm
• System: Microcomputer-controlled electronic-pneumatic system, analog display, LED digital display, vacuum pressure 0 to -20 kPa, CE Marking Compliant. Contact to Techniq VN for details.

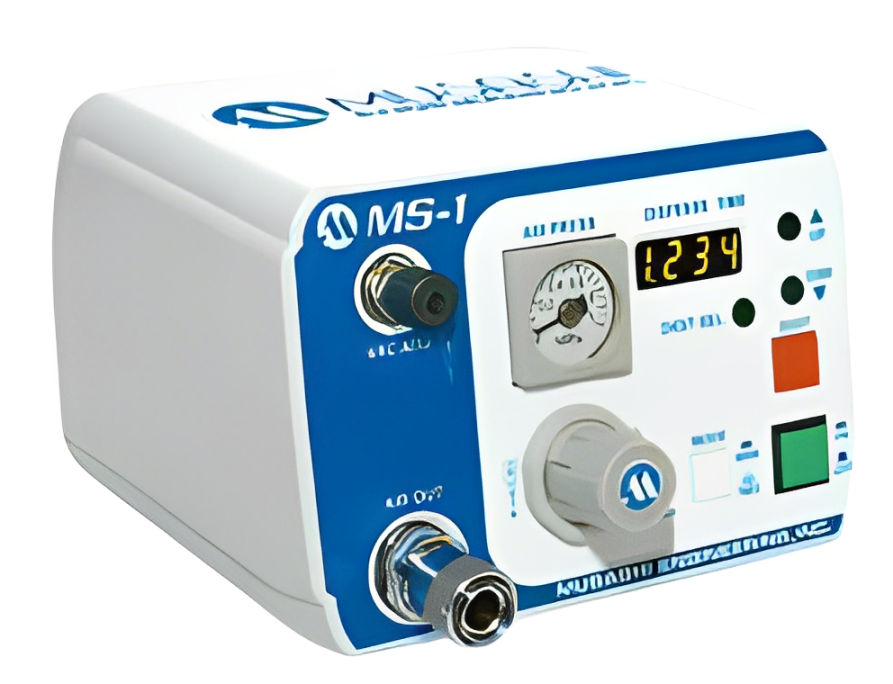

The MS-1 Smart Shot is a high-performance ECO dispenser from Musashi Engineering, designed for efficient and precise fluid dispensing. It features 50% reduced power consumption, 130% improved precision over previous models, and a microcomputer-controlled electronic-pneumatic system. This ultra-lightweight and compact dispenser is ideal for applications requiring reliable analogue control with low maintenance and energy efficiency.
✔ 50% reduced power consumption for energy efficiency
✔ 130% improved dispensing precision vs. older models
✔ Microcomputer-controlled electronic-pneumatic system for accuracy
✔ Compact and lightweight design (790g)
✔ CE-compliant for safety and reliability
✔ Multi-functional setup for various dispensing conditions
✔ LED digital display (4-digit) for time settings
✅ Ideal for precision dispensing of adhesives, resins, and other fluids
✅ Suitable for manual and semi-automated production
✅ Used in electronics, medical device manufacturing, and industrial assembly
| Specification | Details |
|---|---|
| Model | MS-1 Smart Shot |
| Control System | Microcomputer-controlled electronic-pneumatic system |
| Pressure Adjusting Range | 0.02 – 0.70 MPa |
| Vacuum Pressure | 0 to -20 kPa |
| Dispensing Time Range | 10ms – 9,999 sec |
| Dispensing Time Display | LED digital (4 digits) |
| Input/Output Signal | Input: Non-contact & Contact / Output: Non-contact |
| Operating Environment | 15-35°C, 25-75% humidity, below 2000m elevation |
| Protection Class | IP-40 |
| Supply Air Pressure | Max 0.8 MPa (Dispensing pressure +0.1 MPa or More) |
| Power Supply | AC 100-240V, 50/60Hz, 12W |
| Dimensions (WxDxH) | 142 × 138 × 103 mm (excluding protrusions) |
| Weight | 790g |
