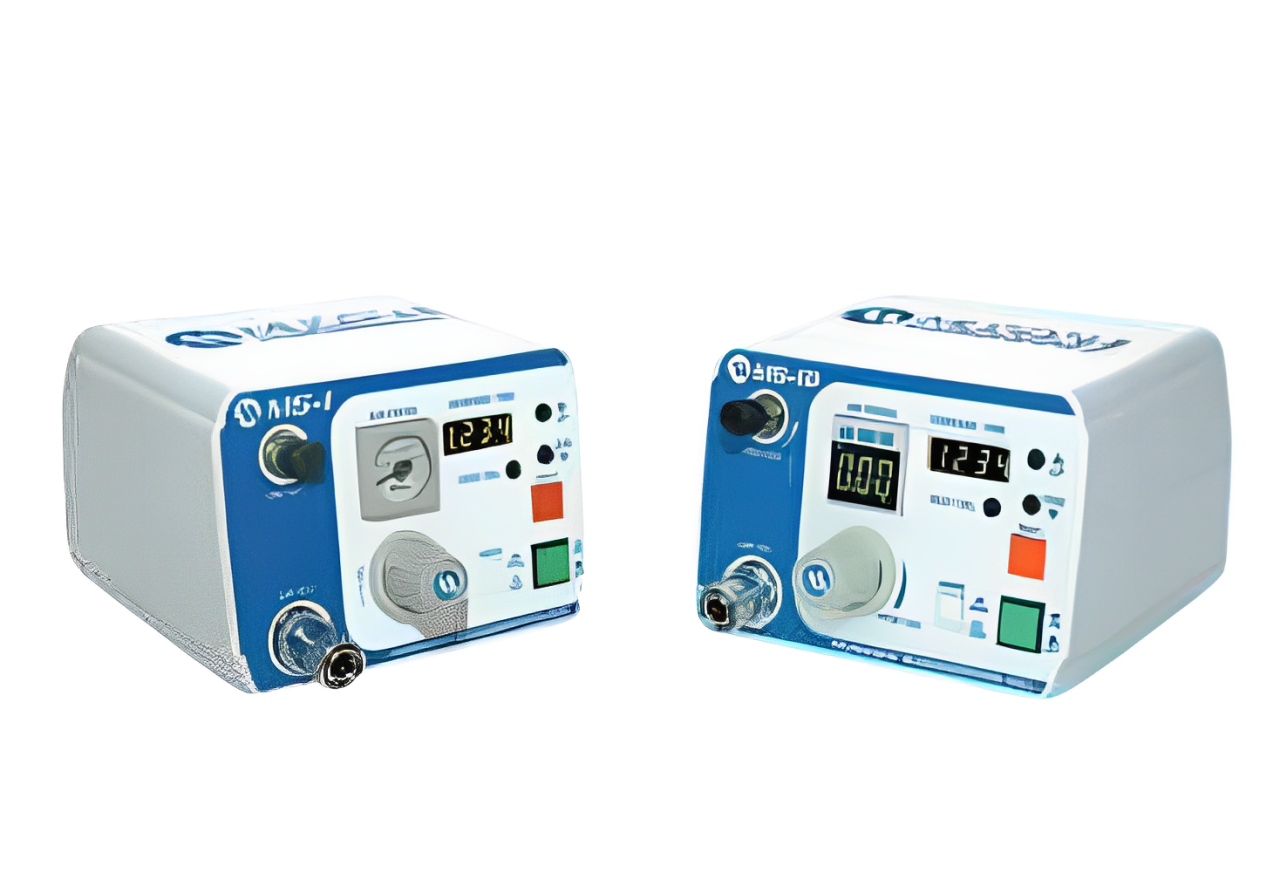

Musashi SMART SHOT MS-1MS-1D Air Pulse Dispenser Controller

• Type: Air Pulse Dispenser Controller
• Brand: Musashi Engineering
• Capacity: 20 to 700 kPa pressure range, 0.010 to 9,999 s dispensing time
• Size: 142 x 138 x 103 mm
• System: Microprocessor-controlled electronic and pneumatic system, analog (MS-1) or digital (MS-1D) display, LED digital time display, vacuum pressure 0 to -20 kPa, CE Marking Certified, EU RoHS Compliant. Contact to Techniq VN for details.

Product Overview

The SMART SHOT™ MS-1/MS-1D from Musashi Engineering is a high-precision, cost-effective air pulse dispenser designed for economic and accurate dispensing. It features an ultra-lightweight and compact design, low power consumption (12W), and a microprocessor-controlled electronic-pneumatic system. The MS-1 features an analog display, while the MS-1D is equipped with a digital pressure display for enhanced precision.

Key Features

✔ Low Power Consumption – only 12W, energy efficient
✔ Microprocessor-controlled electronic-pneumatic system for precision
✔ Compact and lightweight design – only 790g
✔ Multifunctional setup function for dispensing condition adjustments
✔ MS-1: Analog display, MS-1D: Digital pressure display
✔ LED digital display (4 digits) for dispensing time
✔ CE-marked & EU RoHS compliant

Applications

✅ Precision dispensing of optical adhesives, solders, and various fluids
✅ Electronics, medical devices, and photonics applications
✅ Economic, high-quality dispensing for manual & semi-automated processes

Technical Specifications

Specification	MS-1 / MS-1D
Control System	Microprocessor-controlled electronic-pneumatic system
Pressure Adjusting Range	20 – 700 kPa
Vacuum Pressure	0 to -20 kPa
Dispensing Time Range	0.010 – 9,999 s
Dispensing Time Display	LED digital (4 digits)
Pressure Display	MS-1: Analog, MS-1D: Digital
Input/Output Signal	Input: Non-contact & Contact / Output: Non-contact
Operating Environment	+15°C to +35°C, 25-75% humidity, below 2000m elevation
Protection Class	IP40
Maximum Supply Air Pressure	800 kPa (Dispensing Pressure +100 kPa or More)
Power Supply	AC 100-240V, 50/60Hz, 12W
Dimensions (WxDxH)	142 × 138 × 103 mm
Weight	790g
