Item Number: MX-5200 Series (includes MX-5210, MX-5211, MX-5220, MX-5241, MX-5250, MX-5251)
Manufacturer: Metcal (OK International, Cypress, California, USA)
Application: Soldering, desoldering, and rework of SMD, through-hole, high-mass, and thermally sensitive components
Key Technology: SmartHeat® with dynamic power sharing, Connection Validation™, specialized hand-pieces and tip geometries
Heating Method: Induction heating at 13.56 MHz for precise, rapid temperature response
Compatibility: Backward compatible with Metcal MX-500 systems; supports STTC, SMTC, PTTC, STDC, UFTC cartridges
Specifications: 100–240 VAC, 125 W, 80 W/channel, CE/cTUVus certified, compact 12.1×13.0×23.5 cm, ESD safe

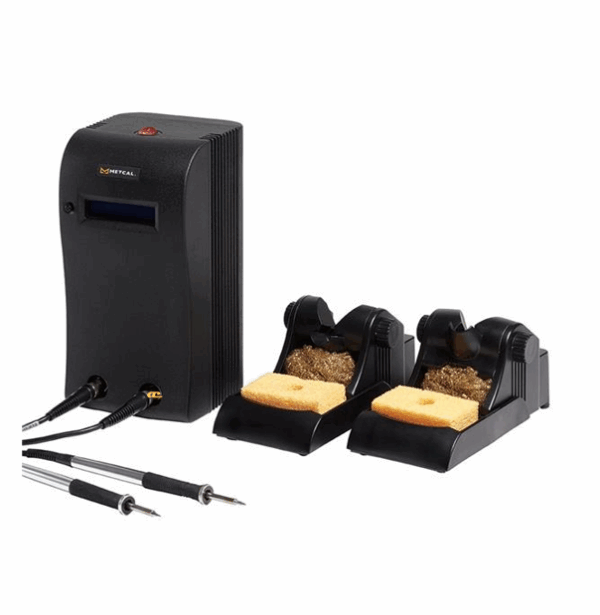

The MX-5200 Series Dual Simultaneous Soldering Systems represent Metcal’s advanced solution for soldering, desoldering, and rework applications. Building on the MX-5000 platform, this series introduces dual-port functionality, enabling two hand-pieces to operate simultaneously with dynamic power-sharing of up to 80 watts per channel. The system integrates SmartHeat® technology for precise power-on-demand delivery, ensuring reliability, process control, and enhanced operator efficiency.
The MX-5200 series offers a broad scope of use across modern electronics assembly and repair:
General soldering and rework – Suitable for high-volume production, lead-free applications, and touch-up tasks.
UltraFine™ soldering – Specialized hand-piece for delicate components, restricted spaces, and high-density PCBs.
Precision tweezer rework – Designed for surface-mount component removal and replacement.
Through-hole desoldering – Using the MX-DS1 hand-piece for plated-through-hole component extraction.
High thermal demand soldering – With the MX-H6-HTD hand-piece, ensuring stable operation on large thermal mass components.
Power Output: 80 W max. per channel (dynamic dual sharing)
Input Voltage: 100–240 VAC, 50/60 Hz
Operating Temperature: 10 – 40 °C
Max Enclosure Temp: 55 °C
Output Frequency: 13.56 MHz
Temperature Stability: ±1.1 °C (still air)
Tip-to-Ground Potential: < 2 mV
Tip-to-Ground Resistance: < 2 Ω
Dimensions (PSU): 12.1 × 13.0 × 23.5 cm; Weight: 3.35 kg
Workstand Dimensions: 8.6 × 19.1 × 8.3 cm; Weight: 0.476 kg
Certification: cTUVus, CE
Hand-piece Cable Length: 122 cm, ESD-safe, burn-proof
Connector Type: F connector
