Item Numbers: ALPHA 100 (portable hotmelt dispensing unit, integrated controls, optional stand)
Manufacturer: LPMS USA
Application: Low pressure molding for PCB and electronics encapsulation, waterproofing, strain relief, vibration and chemical protection
Dispensing Control: Integrated 0.3L melt tank, 1 temperature zone, integrated temperature, pressure and timing controls
Size & Weight: 520 × 440 × 510 mm, 40 lbs
Power & Certification: 110 VAC, 50/60 Hz, 15A, air 90–110 PSI, 2.5 CFM
More information & technologies: Contact to Techniq VN for details. (Email: info@techniq.vn & Tel: +84 88 990 19 29)

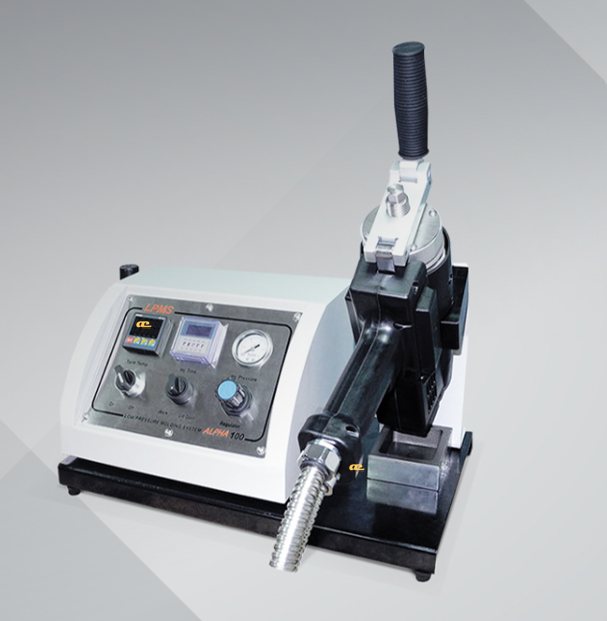

The ALPHA 100 is a compact and portable low pressure molding machine specifically designed for hotmelt adhesive applications. Equipped with integrated controls for temperature, pressure, and timing, the system ensures precision and repeatability in encapsulation processes. Its innovative easy-to-load barrel design and optional stand enhance operational convenience, making it a versatile solution for electronics protection and encapsulation.
The ALPHA 100 is widely applied in electronics manufacturing where delicate components require encapsulation and protection. Typical uses include circuit board waterproofing, strain relief for wires and cables, and encapsulation of sensors, connectors, and batteries. By combining environmental protection, vibration resistance, and chemical durability, it replaces traditional potting, sealing, and conformal coating processes with a faster, cleaner, and more cost-effective solution.
| Parameter | Specification |
|---|---|
| Machine Dimensions | 520 × 440 × 510 mm (20.47 × 17.32 × 20.07 in) |
| Weight | 40 lbs |
| Electricity | 110 VAC, 50/60 Hz, 15A |
| Air Input | 90 – 110 PSI |
| Air Volume | 2.5 CFM |
| Melt Tank Capacity | 0.3 L |
| Integrated Temperature Zones | 1 |
| Application Pressure Range | 20 – 500 psi |
| Application Viscosity Range | 1,000 – 10,000 cps |
| Performance Temperature Range | -65°C to 200°C |
| Environmental Compliance | RoHS, REACH, Solvent-free, No VOC |
| Protection Ratings | IP 65–68 (waterproofing and dust resistance) |
