Item Numbers: BETA 300 (horizontal, single-station, 7L melt tank, 3L optional)
Manufacturer: LPMS USA
Application: PCB and electronics encapsulation, waterproofing, strain relief, vibration protection
Dispensing Control: Integrated melt tank, 2 zones, 7.5” touchscreen
Size & Weight: 950 × 800 × 1000 mm, 628 lbs
Power & Certification: 220 VAC, 1 Phase, 25A, air 90–110 PSI, safety features included
More information & technologies: Contact to Techniq VN for details. (Email: info@techniq.vn & Tel: +84 88 990 19 29)

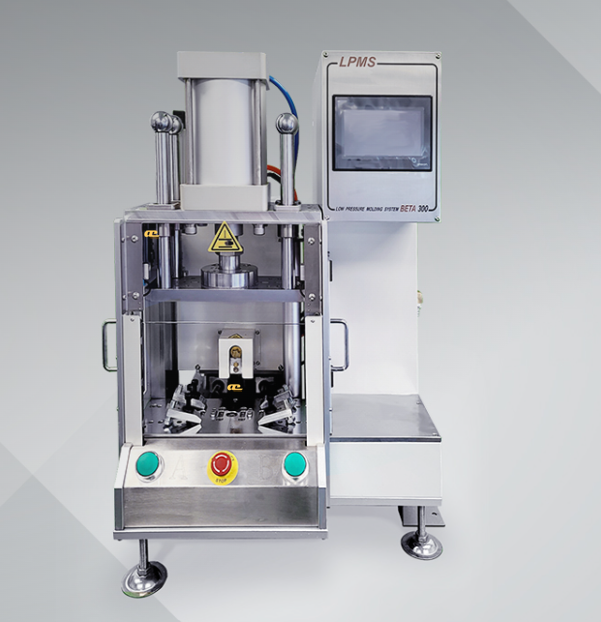

The BETA 300 Low Pressure Molding Machine is a compact horizontal injection system with an integrated melt tank. It is specifically engineered to encapsulate and safeguard sensitive electronic components using environmentally friendly hot-melt adhesives. Distinguished by its benchtop design, operator safety features, and touchscreen interface, the BETA 300 enables rapid processing, simplified manufacturing steps, and substantial cost savings compared to traditional potting or high-pressure injection molding.
The BETA 300 is ideally suited for circuit board protection, connector sealing, wire and cable overmolding, and battery encapsulation. It provides superior waterproofing, strain relief, vibration damping, and resistance to harsh chemicals. The process is widely applied in automotive electronics, consumer devices, sensors, and industrial equipment, delivering both enhanced reliability and design flexibility.
| Parameter | Specification |
|---|---|
| Machine Dimensions | 950 × 800 × 1000 mm (37.40 × 31.49 × 39.37 in); 628 lbs |
| Electricity | 220 VAC, 1 Phase, 50/60 Hz, 25 A |
| Air Input | 90–110 PSI |
| Air Volume | 4 CFM |
| Clamping Method | Pneumatic |
| Clamping Force | 1.2 Tons |
| Clamping Stroke | 125 mm (Standard); 150 mm (Optional) |
| Max. Mold Size | 295 × 170 × 150 mm |
| Safety Features | Light Curtains, Emergency Stop, Two-Hand Door Interlocks, Lockout Tagout |
| Melt Tank | 7 L Square (Standard); 3 L Round (Optional) |
| Temperature Control | 2 Zones |
| Process Pressure Range | 20 – 500 psi |
| Viscosity Range of Adhesives | 1,000 – 10,000 cps |
| Operating Temperature Range | -65°C to +200°C |
| Waterproofing Standard | Meets IP65 – IP69 sealing requirements |
| Compliance | RoHS and REACH compliant; VOC-free, recyclable materials |
